Ultrasonic Atomizer Nozzles for making fine particles from liquids, flow through design won't clog or wear out.

Wide Spary Atomizer Nozzle

Wide Spray
Narrow Spray Atomizer Nozzle

Narrow Spray
Radial Spray Atomizer Nozzle

Radial Spray
High Temp Atomizer Nozzle

High Temp
Wide Spray Atomizer Nozzle with Extension

Wide Spray with Extension
Coming Soon

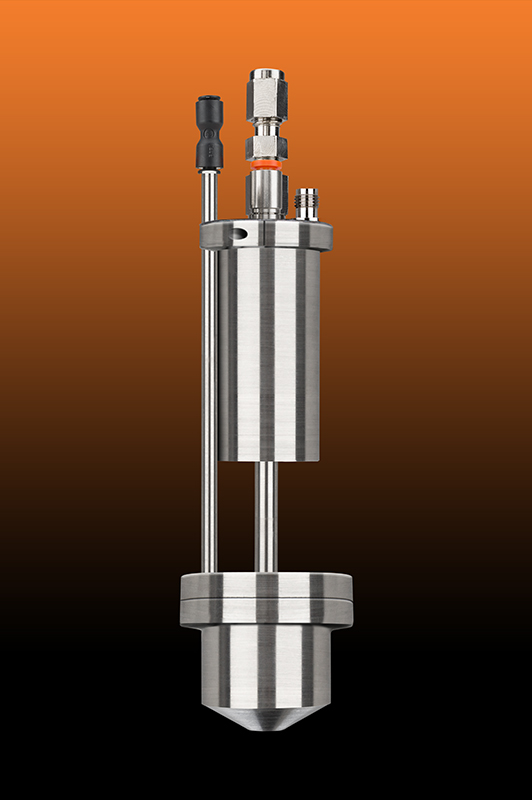

Variable Spray Shaping Atomizer Nozzle
Patent Pending


HOW IT WORKS.

Atomizer How It Works
Sonaer® ultrasonic atomizer nozzles are a flow through design. Liquid is pumped at the rear of the probe and travels down through the center until it reaches the vibrating tip. Once the liquid reaches the tip portion of the nozzle, ultrasonic vibrations pulverize the liquid into ultra fine particles for precise coating applications without the use of air pressure.

In the center of the probe are piezo ceramics which convert the electrical signal to mechanical vibration.  This vibration is amplified by the step that forms the tip of the probe, and is reflected back towards the piezo ceramics , mixes with outgoing waves, creating standing waves.  These standing waves cause a pumping action that sucks liquid towards the center of the probe.

With the Sonaer atomizer probe design, liquid will spray continuously,  will not flow back into the probe from these standing waves, creating a sudden spurt of liquid, called "flashing". The spray from these atomizers will be smooth and controllable with very little over spray.  Spray thickness is nano - microns which is all user adjustable.  The thickness is set by the pumps flow rate or shot, power level of the nozzle, liquid characteristics and the time the substrate is exposed to the liquid.  For heavy coatings use low frequency probes, for ultra thin coatings use the higher frequency probe nozzles listed below.

Sonaer's
atomizer nozzle generator is state-of-the-art, with surface mount components throughout, unique software algorithms making the generator 100% digital which allows the nozzle to be controlled by a PC with "Auto Atomization Power Adjustment" (AAPA) capability. AAPA automatically adjust the power output to the nozzle with changes in liquid flows without stalling as with all other atomizer nozzle suppliers.  The nozzle generator can also be operated by the customer through .dll file protocol if desired and has infinite frequency control for changes in temperature, loads and operates all other manufacturer atomizer nozzles. Many features of our protective software tells the user if the power is too low for the liquid flow, disables power for any fault with information provided to the user on a LCD display.

Sonaer will custom make 304 or 316 stainless steel nozzles and components for customers who require these materials as a special order.  Any frequency nozzle ( 20kHz - 60kHz) can be designed and made from these materials.  Flow rates maybe different from the list below.  Seals can be either Viton or PTFE Teflon. Probe case, tube and back cover can be made in stainless steel. See DWG below for standard materials.

The tube connection at the rear is for a 1/8" diameter Swage-lock, not included, allowing connection of various fittings and manifolds for introduction of multiple liquids and gases.
1/8" to 1/8" Swage-Lock1/8" to 1/16" Swage-Lock
Wetted Materials: Titanium 6Al-4V, PTFE Teflon Seals, 304 Stainless Steel
Nozzle Case: Anodized Aluminum 6061 with Viton Seals
Temperature Range: -23 to 150 deg C (-10 to 302 deg F)  High Temperature Nozzle 538 deg C (1000 deg F)
Pressure: Vacuum to 120 psi

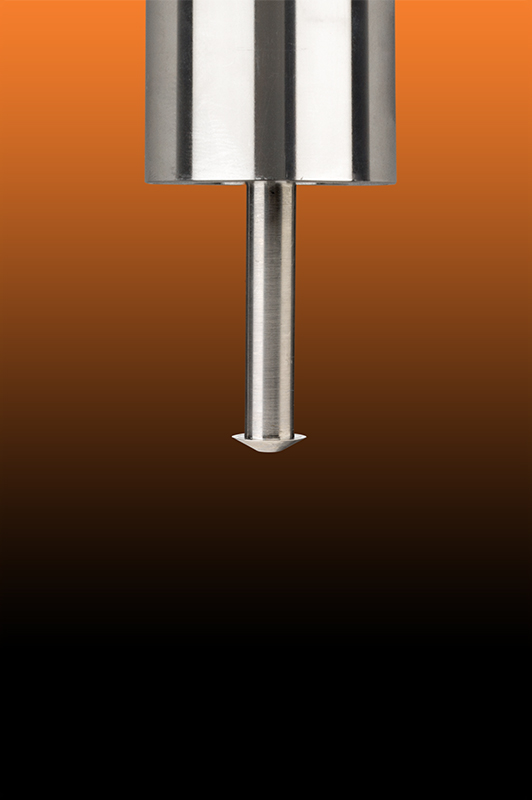

Wide Spray Atomizer Nozzles
Atomizers 3/8 tip configurations.These ultrasonic atomizer nozzles have the widest spray pattern due to the tip design.  20kHz-60kHz nozzle have an upside down umbrella shape tip whereas the 120kHz and 130kHz nozzle has a convex tip shape.  Sprays in the ul range will be similar to the Narrow series below and will get wider as the flow rate increases.  Drop diameter provided is with the Lang formula below.  For actual measured particle data using a DCIII particle counter see DATA link next to each nozzle. 3D .pdf model for each nozzle .  All nozzles can be provided with cooling ports for spray shapping, applications for elivated temperatures or for keeping piezo crystals lower then 150 deg C (302 deg F) add CP at the end of the model number. For dual liquid port 30kHz nozzle add DP at the end on model number




WS130K50

MODEL Frequency Flow Rate Drop Diameter (microns) Particle Distribution Data
Drawings
Weight
(grams)
WS20K50
20 kHz 0 - 160 ml/min 42 DATA PHOTO
3D 155
WS30K50
30 kHz 0 - 160 ml/min 32  DATA
PHOTO 3D 134
WS40K50
40 kHz 0 - 50 ml/min 26 DATA PHOTO 3D 100
WS60K50
60 kHz 0 - 40 ml/min 20 DATA PHOTO 3D 91
WS120K50
120 kHz
0 - 20 ml/min
12.5
DATA
3D 94
WS130K50
130 kHz
0 - 20 ml/min
11.8
DATA PHOTO 3D 92

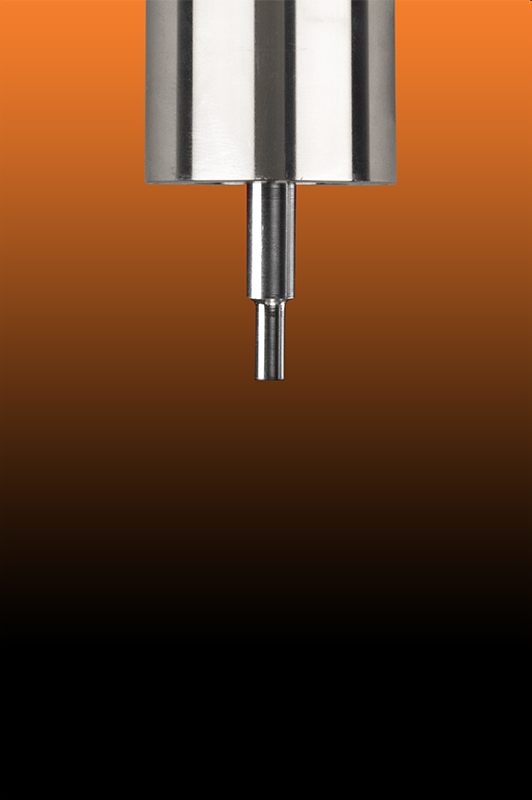

Narrow Spray Atomizer Nozzles
Atomizer Cone TipThe narrow spray ultrasonic atomizer nozzles have the narrowest spray pattern due to the flat tip design.   This atomizer nozzle is very popular for extra low flows in the ul/min range. Drop diameter provided is with the Lang formula below.  For actual measured particle data using a DCIII particle counter see DATA link next to each nozzle. All nozzles can be provided with cooling ports for spray shapping, applications for elivated temperatures or for keeping piezo crystals lower then 150 deg C (302 deg F) add CP at the end of the model number.




NS130K50

MODEL Frequency Flow Rate Drop Diameter (microns) Particle Distribution Data PHOTO Drawings Weight
(grams)
NS40K50
40 kHz 0 - 40 ml/min 26 DATA
PHOTO 3D 100
NS60K50
60 kHz 0 - 40 ml/min 20 DATA PHOTO 3D 91
NS120K50
120 kHz 0 - 20 ml/min 12.5 DATA PHOTO 3D 94
NS130K50
130 kHz
0 - 20 ml/min 11.8
DATA PHOTO 3D 92

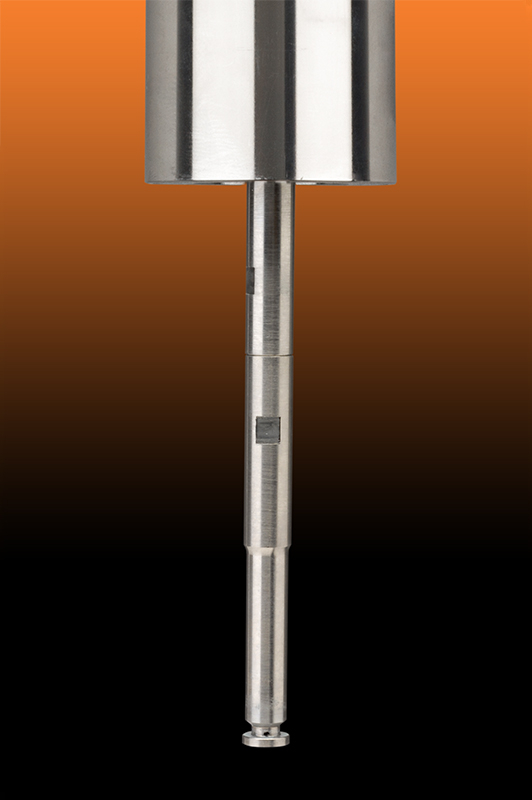

Radial Flow Atomizer Nozzle
Atomizer Radial TipThe CF40K50T ultrasonic atomizer nozzle spray liquid through four small holes drilled into the side of the vibrating tip.  This nozzle is good for coating vials and counter bores. Drop diameter provided is with the Lang formula below.  For actual measured particle data using a DCIII particle counter see DATA link next to the nozzle. All nozzles can be provided with cooling ports for spray shapping, applications for elivated temperatures or foe keeping piezo crystals lower then 150 deg C (302 deg F) add CP at the end of the model number.

MODEL
Frequency
Maximum Flow Rate
Drop Diameter (microns)
Particle Distribution Data
Drawings Weight
(grams)
CF40K50
40 kHz
0 - 10 ml/min 26
DATA PHOTO 3D 135

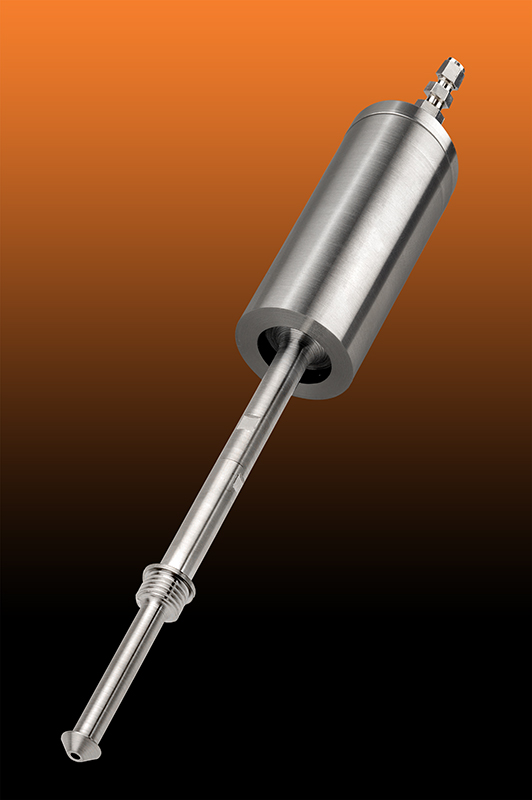

High Operating Temperature Atomizer Nozzles
High Temperature Atomizer NozzlesSonaer's high temperature atomizer nozzle can be used in an environment where the tip temperature can reach as high as 1000 degrees F.  Along the tip extension is a thread for attaching to a chamber being heated.  This atomizer is good for fuels being burned and high temperature spray drying. All nozzles can be provided with cooling ports for spray shapping, applications for elivated temperatures or for keeping piezo crystals lower then 150 deg C (302 deg F) add CP at the end of the model number.






HTWS30K50
MODEL Frequency Maximum Flow Rate Drop Diameter (microns) Particle Distribution Data PHOTO Drawings Weight
(grams)
HTWS30K50
30kHz
0-100 ml/min
32
DATA PHOTO
3D NA

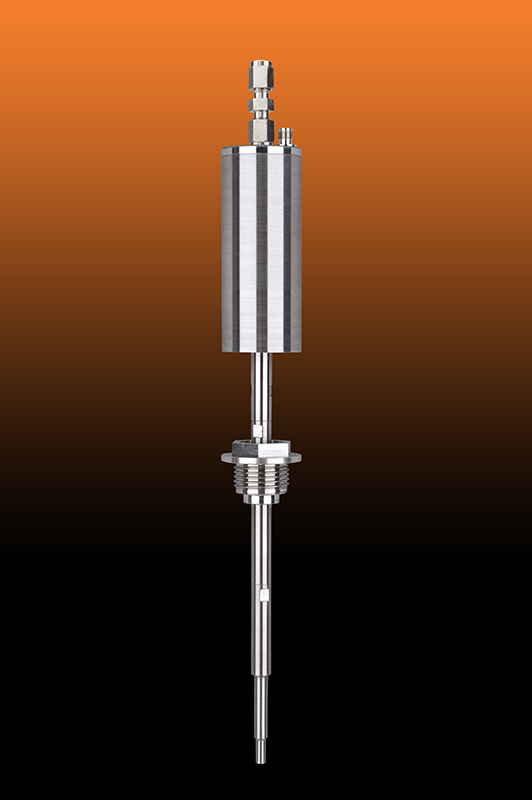

HTNS40K50
40kHz
0 - 50  ml/min
26
DATA PHOTO 3D NA

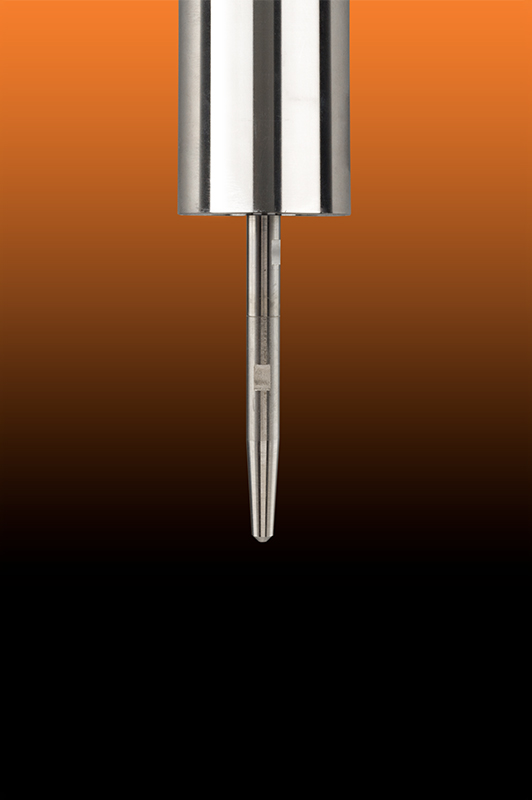

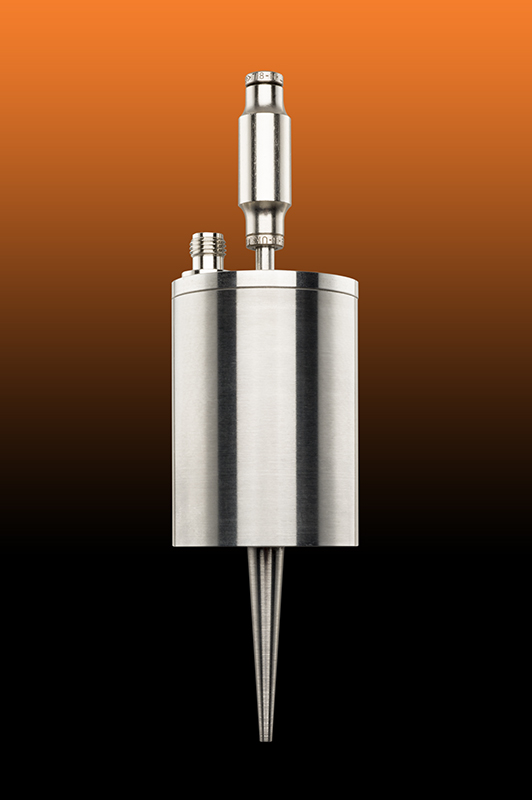

Wide Spray Atomizer Nozzles with Extension
Atomizer Nozzle with ExtensionThe wide spray ultrasonic atomizer nozzles have the widest spray pattern due to the tip design. Sonaer's 40kHz-60kHz nozzle have an taper at the end of the tip.  Sprays in the ul range will be similar to the Narrow series below and will get wider as the flow rate increases.  Drop diameter provided is with the Lang formula below.  For actual measured particle data using a DCIII particle counter see DATA link next to each nozzle. All nozzles can be provided with cooling ports for spray shapping, applications for elivated temperatures or for keeping piezo crystals lower then 150 deg C (302 deg F) add CP at the end of the model number.




WS40K50E
MODEL Frequency Maximum Flow Rate Drop Diameter (microns) Particle Distribution Data PHOTO Drawings Weight
(grams)
WS40K50E 40 kHz 0 - 30 ml/min 26 DATA PHOTO 3D 120
WS60K50E 60 kHz 0 - 30 ml/min 20 DATA PHOTO 3D 97

Sonaer® ultrasonic atomizers come standard with flow through design for introducing liquids from the back of the probe.  The atomizer transducer is made from titanium & stainless steel and has TEFLON O-rings for atomizing many different types of solutions. Sonaer ultrasonic atomizers are easy to clean, maintain, do not clog and have no moving parts to wear out.

Without the use of air pressure, low viscosity liquids are pumped through the center of the probe, where it is atomized into fine particles.  The particles are then used in processes either for coating, burning, moisturizing, making nano particles or other applications that require particles made from liquids. Sonaer's ultrasonic atomizer designs are anti-flashing, preventing liquid from reversing back into the probe from ultrasonic standing wave vibration and bursting out from the tip causing irregular droplets to be formed.  Smaller and more uniform droplet size is a benefit from this type of liquid atomization.

Atomizers come with Sonaer's Atomizer Digital Ultrasonic Generator, which includes variable power control, timer functions and external enable/disable interface.

Fluid Delivery Pump Systems for Ultrasonic Atomizer Nozzles
Peristaltic Pumps
Peristaltic Pump

Pressurized Reservoir
Pressure Reservoir
  Gear Pump
Gear Pump
Gravity Feed
Gravity Feed
Syringe Pump
Syringe Pump

Features:

Flow Through Probe Design
Very low flow rates, ul/min
Smooth operation, anti-flashing design
Titanium and stainless steel Construction
1/8" tube fitting for easy attachement of fluid lines
Welded Stainless Steel construction
SMA connector at rear for easy attachement of nozzle cable
Different Spray Paterns Available
Extended Lengths Avaiable
Various Tip Configurations
Flanges also available, special order
Uses Atomizer Ultrasonic Generator

Atomizer Nozzle and Generator

3U Rack Mount Generator
19 inch 3U Rack Mount Atomizer Nozzle
Generator.  Unit can control Eight Nozzles at one time.
Either through a PC or from front panel.
  Operation for 24 Nozzles Shown

Perfect for Blood Collection Tube Coatings

PC Controller for Atomizer Nozzles
Remotely operate the Atomizer Nozzle through a PC

Click this link for papers and articles using Sonaer's ultrasonic products
Atomizer and Nebulizer Technical Information

More Information

Dimensional Outline of Atomizer Nozzles

Particle Size Introduction

Nebulizers make 1- 4 micron particles, TEFLON Coated available for Acetones and Ketones

Sonaer can add flanges for mounting to enclosed chambers or pipes.

Other Frequency Atomizers Available Special Order

Particle Size:

The average atomized or nebulized particle size is related to the surface tension (T), density (p) and the frequency (f) of the liquid.  The following Lang formula will help in determining particle size.

In the case of water, where T=.0729N/m, p=1000kg/cu. m and f=50kHz, the size of the particles centers around 22.5 microns
