Droplet Measurements
 |

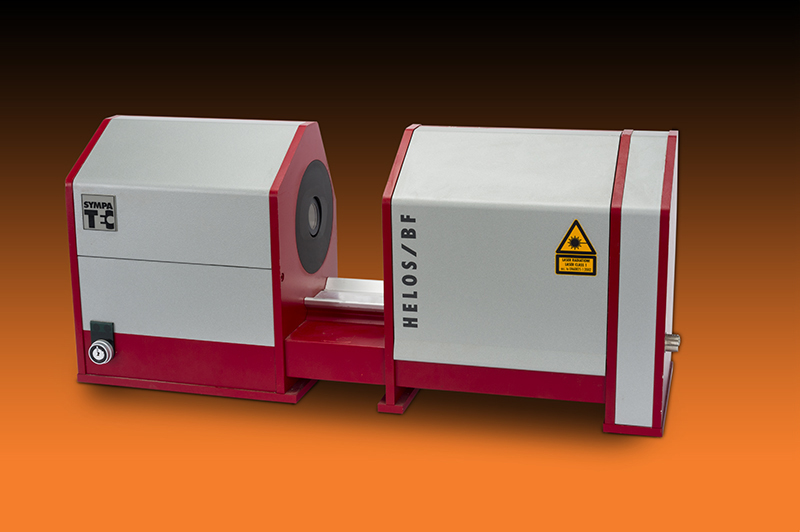

Sonaer droplet measuring system consists of the Sympatec HELOS particle sizer. If a customer wishes to size their products droplet formation, Sonaer will provide this service based on the customers requirements. Inquire for price information Sensor: HELOS BF: 0.1 µm - 875 µmPrinciple: laser diffraction l = 632.8 nm Dispersion: adaptable modules aerodispersion, sprays, suspensions, emulsions Measurement: multielement detector frequency 31 semi-circular elements 2000/s, permanent autofocus Evaluation: Fraunhofer MIE as an option Ranges: optical modules R1 to R8 Performance: repeatability comparability x10, x50, x90s < 0.04% typical (repeated sample) s < 0.3% typical (riffled sample) s < 1% mean rel. SD /Dx/ < 2.5% rel max. deviation < 5% rel. submicron deviation Operation: WINDOX software WINDOWS XP Pro / 2000 Applications: laser power protection class/type beam diameter (1/e²) 5 mW 3A/IP40 R1 & R2 : 2.2 mm R3-R5: 13 mm R6 & R7: 26 mm R8: 35mm QA-system certifiication reference material validation standard test procedure SiC - F1200 (x50 = 4.5 µm) SiC - P600 ( x50 = 27µm) SiO2 - F34 (x50 = 220 µm) SiC -P 50 (x50 = 420µm) FDA approved |
